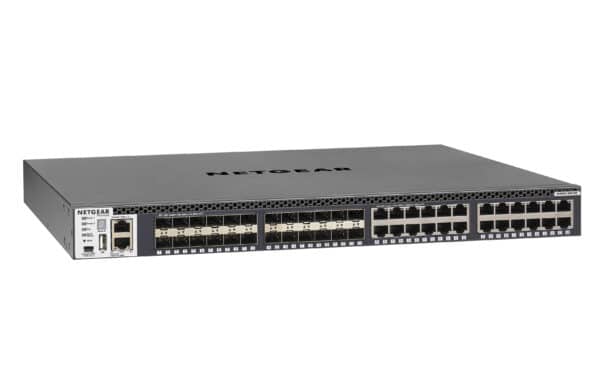

Netgear XSM4348S-100NES M4300-24X24F MANAGED SWITCH

Manufacturers Code:
XSM4348S-100NES
Solstice AV Code:
XSM4348S-100NES

NETGEAR M4300-24X24F, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Product Details

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

– M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
– High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

– Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
– 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

– Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
– DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

– Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
– Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services

– With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
– With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

– Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
– Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

– NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
– 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Technical Spec

Switch type

Managed

ARP inspection

Yes

Fiber optic connector

SFP+

USB 2.0 ports quantity

1

10G support

Yes

Port mirroring

Yes

Flow control support

Yes

Rate limiting

Yes

Auto-negotiation

Yes

Virtual LAN features

Private VLAN

Switching capacity

960 Gbit/s

Store-and-forward

Yes

Number of static routes

64

Jumbo frames

12000

DHCP features

DHCP server, DHCP client

Security algorithms

HTTPS, SNMP, SSH

BPDU filtering/protection

Yes

Stackable

Yes

Product colour

Black

Safety

CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950

Built-in processor

Yes

Internal memory

1024 MB

Noise level

35.8 dB

Power supply included

Yes

Power over Ethernet (PoE)

No

Storage temperature (T-T)

-20 – 70 °C

Non-operating altitude

0 – 3000 m

Width

440 mm

Height

44 mm

Cables included

AC, LAN (RJ-45), Mini-USB

Rubber feet

Yes

Harmonized System (HS) code

85176990

Switch layer

L2/L3/L4

Web-based management

Yes

SFP+ module slots quantity

24

Console port

RJ-45/Mini-USB

Networking standards

IEEE 802.3ad, IEEE 802.3az

Cable types supported

Cat5, Cat5e, Cat6, Cat7

IP routing

Yes

Auto-sensing

Yes

VLAN support

Yes

Number of VLANs

4000

MAC address table

128000 entries

Forwarding rate

714 Mpps

Latency (10 Gbps)

2.39 µs

Jumbo frames support

Yes

Packet buffer memory

56 MB

Access Control List (ACL)

Yes

SSH/SSL support

Yes

Multicast support

Yes

Rack mounting

Yes

Form factor

1U

LED indicators

Activity, Power, Speed

Processor frequency

800 MHz

Flash memory

256 MB

Power consumption (max)

161 W

Operating temperature (T-T)

0 – 50 °C

Operating altitude

0 – 3000 m

Heat dissipation

133176 BTU/h

Depth

345 mm

Weight

6.12 kg

Rack mount kit

Yes

Resource CD

Yes

Enquire now
£5,155.78

Out of stock
