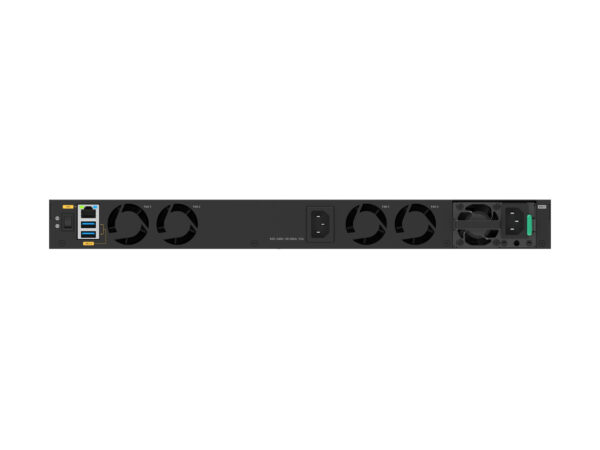

Netgear XSM4328CV-100NES 24x10G/Multi-Gig PoE+ and 4xSFP28 25G (576W base, up to 720W)

Manufacturers Code:
XSM4328CV-100NES
Solstice AV Code:
XSM4328CV-100NES

NETGEAR M4350-24X4V, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U

Product Details

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Technical Spec

Switch type

Managed

ARP inspection

Yes

SFP28 ports quantity

4

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

Full duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

IPv4 routes

512

VLAN support

Yes

Number of VLANs

4093

Switching capacity

680 Gbit/s

Store-and-forward

Yes

Latency (10 Gbps)

2.2 µs

Jumbo frames

12000

DHCP features

DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

IGMP snooping

Yes

MAC address filtering

Yes

Loop protection

Yes

Authentication

Guest VLAN, MAC-based authentication

Password protection

Yes

Authentication type

RADIUS, TACACS+

Multicast support

Yes

Management protocols

SNMP V1, V2, V3

Routing protocols

OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Stackable

Yes

Product colour

Black

Airflow direction

Front-to-back airflow

Processor model

ARM Cortex-A57

Memory type

DDR4-SDRAM

Flash memory

512 MB

Power source

AC

Power consumption (typical)

119.4 W

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

0 – 45 °C

Operating altitude

0 – 3000 m

Width

440 mm

Height

43.2 mm

Cables included

AC, USB Type-C

Rack mount kit

Yes

Sustainability compliance

Yes

Power supply

880 W

Switch layer

L3

Web-based management

Yes

Power connector

AC-in jack

10G support

Yes

Policy-based routing

Yes

Rate limiting

Yes

6to4 tunnel

Yes

IPv6 routes

256

Virtual LAN features

MAC address-based VLAN, Private VLAN, Voice VLAN

MAC address table

16000 entries

Throughput

505.92 Mpps

Latency (1 Gbps)

2.43 µs

Jumbo frames support

Yes

Packet buffer memory

32 MB

Access Control List (ACL)

Yes

IGMP proxy

Yes

Static port security

Yes

BPDU filtering/protection

Yes

Root protection

Yes

DoS attack prevention

Yes

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Rack mounting

Yes

Form factor

1U

LED indicators

Yes

Built-in processor

Yes

Processor frequency

1800 MHz

Internal memory

2048 MB

sFlow

Yes

Power supply included

Yes

Power consumption (max)

750.1 W

Storage temperature (T-T)

-20 – 70 °C

Non-operating altitude

0 – 3000 m

Depth

400 mm

Weight

6.58 kg

Quick start guide

Yes

Included power plug types

EU, UK, NA

Sustainability certificates

BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
