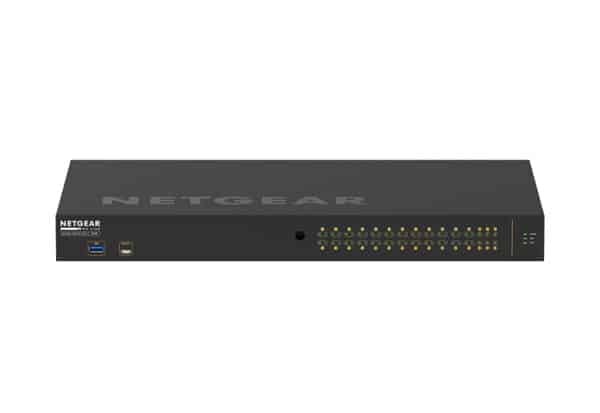

Netgear GSM4230P-100EUS M4250-26G4F-POE+ MANAGED SWITCH

Manufacturers Code:
GSM4230P-100EUS
Solstice AV Code:
GSM4230P-100EUS

NETGEAR GSM4230P-100EUS, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Product Details

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments
24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Technical Spec

Switch type

Managed

SFP+ module slots quantity

4

Jumbo frames

12000

Form factor

1U

Noise level

34 dB

Power supply included

Yes

Power over Ethernet (PoE)

Yes

Width

440 mm

Height

43.2 mm

Cables included

AC, LAN (RJ-45), USB Type-C

User guide

Yes

Switch layer

L2/L3

Jumbo frames support

Yes

Rack mounting

Yes

Product colour

Black

Fanless

Yes

Power consumption (typical)

401 W

Depth

257 mm

Weight

4.3 kg

Rack rails

Yes

Harmonized System (HS) code

85176990
