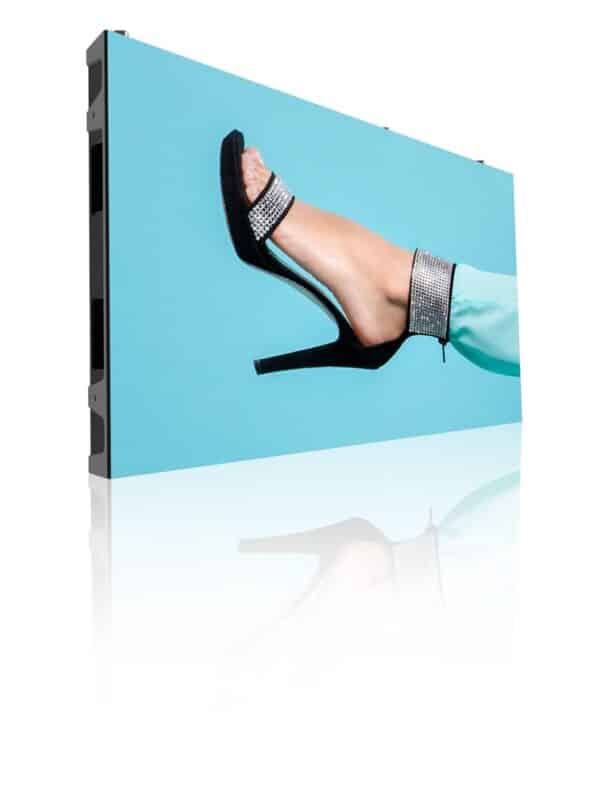

31″ LED Panel 7324-series, P2.4mm SMD1515 Copper, 7500x250mm, curved 45

Manufacturers Code:
Solstice AV Code:

Philips 31BDL7324L, Direct view LED (DVLED), 900 cd/m², 79 cm (31.1″), 312 x 104 pixels, 4000 K, 9500 K

Product Details

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Available in 3 dimensions
Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners.

Conformal coating and ingress protection
Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.

Dynamic Panel Connect
Mix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance – resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel.

Dynamic Power Saving
Philips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows the display to dynamically save on power consumption.

Factory calibrated
Every Philips L-Line LED panel is calibrated in our factory under perfect circumstances. That means there’s no need for further calibration on location, resulting in quicker installations. Calibration and configuration files are available to ensure fast maintenance.

Fire retardant design
Fire retardant design slows down the spread of flames in the event of fire, and help protect the structural integrity of the LED panel in case of fire. Tested and certified with Fire Safety Certifications.

Forms any shape, L-shape corner, or curvature
The Philips L-Line 7000 series LED panles come with a height of 25 cm and are available in 50 cm, 75 cm and 100 cm widths. These displays are ready to be installed in any landscape format with no limitations to size. Also available with bevelled corners to form curved designs in both convex and concave formats.

Optional bevelled corners allow curved displays
Create bezel-free displays of any shape, size or resolution. The modular design of Philips Professional LED panels means you can adapt to any space. Build vast, immersive installations or assemble intriguing patterns. Easily create displays that flow seamlessly around doorways and other openings. Even corners and curved displays become easy to create with the new Philips 7000 series.

Philips Active Health Monitoring
Achieve perfection through precision. Active Health Monitoring makes maintenance fast, simple, and predictable by displaying the exact item of failure and location. Utilising this software that works in real-time both online and offline, replacing the relevant part becomes an efficient process, and a must for display owners with many geographical locations.

Seamless linking for perfect imagery
Your Philips Professional LED Display features built-in cable wiring to keep power and data cables tidy. Display panels are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.

Technical Spec

Display technology

Direct view LED (DVLED)

Display diagonal

79 cm (31.1")

LED backlight


Colour temperature (max)

9500 K

Viewing angle, vertical


Colour depth

14 bit

Display area

0.1875 m²





Ethernet LAN (RJ-45) ports


Power consumption (max)

95 W

AC input frequency

50-60 Hz

Storage temperature (T-T)

-20 – 50 °C


40 mm


4.57 kg

Module height

25 cm

Package width

1056 mm

Package height

392 mm

Display brightness

900 cd/m²

Display resolution

312 x 104 pixels

Colour temperature (min)

4000 K

Contrast ratio (typical)


Viewing angle, horizontal


Brightness uniformity

0 – 97%

Panel life

100000 h

Placement supported


Wall mountable


Panel material


Ethernet LAN


Power consumption (typical)

31.67 W

AC input voltage

100-240 V

Operating temperature (T-T)

-20 – 45 °C


750 mm


250 mm

Module width

25 cm

Cables included

AC, LAN (RJ-45)

Package depth

221 mm
